The Climber

Flip up counter tops and a convertible bed are featured in this custom Sprinter van.

CUSTOM SPRINTER VAN

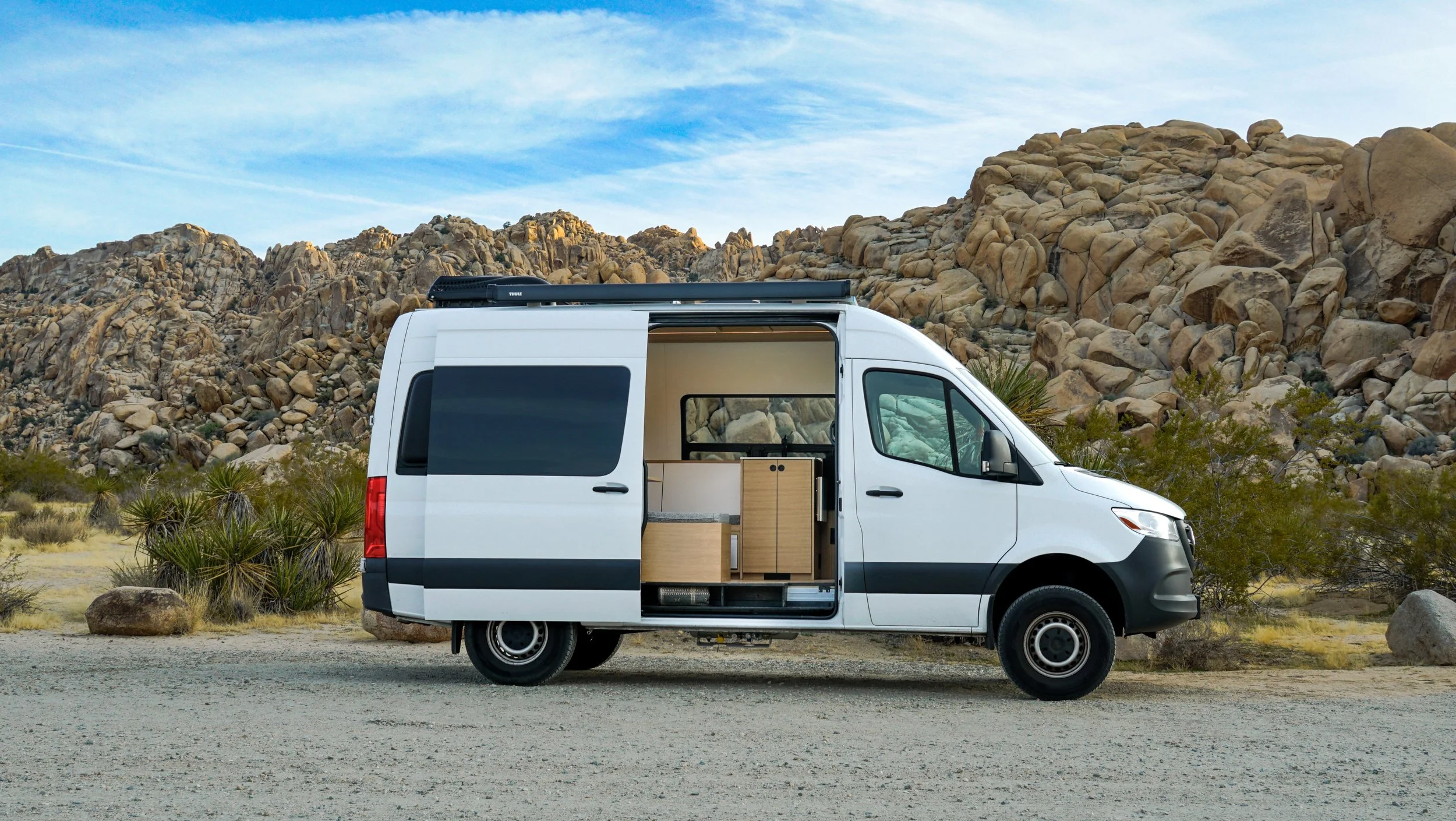

Custom designed and built on a 2019 144” Mercedes Sprinter Van 2500 4x4

Our clients wanted an open floor plan that was spacious enough to entertain friends while also being functional for cooking and sleeping.  Our solution was a pull-out slat bed and the integration of flip-up countertops into the seat back of the bench.

This unique design creates a fully functional kitchen for preparing large meals, which then stows away to create a large enough dining area for four people to comfortably enjoy dinner together.

Build Specifications


Base Vehicle

  • 2019 144” Mercedes Sprinter 2500 4x4

  • 6 cyl Diesel

Electrical

  • Victron MultipPlus 3K Pure Sine Inverter, BMV-712 Battery Monitor, DC-DC Charger 30A

  • Interior Breaker Panel

  • 2 - Renogy 200AH AGM (400 Amp Hours Total)

  • 2 - Renogy 175 Watt Monocrystalline Solar Panels (350 Watts)

  • Shore Power Hook Up

  • White Light LED Lights w/ Dimmer

  • 12V and 120V Outlets Throughout

HVAC

  • Dometic Penguin 11k BTU

  • Propex HeatSource HS2000 6,500 BTU

  • Maxx Air MaxxFan Deluxe

  • Eccotemp L5 Portable Outdoor Tankless Water Heater

  • Isotherm Cruise 36 Refrigerator

Building Material

  • Thinsulate Insulation

  • Kilmat Sound Insulation

  • Cabinets - White Oak

  • Wall Paneling - Paint Grade White

  • 2- Flip Up Counter Tops Above Driver Side Bench

  • Flip Up Counter Top Behind Driver Seat

  • Table Top (Fabricated by Ridgeline) w/ Lagun Mount

  • Memory Foam Mattress

PLUMBING

  • 28 Gal Fresh Water Tank

  • 5 Gal Grey Water Tank

  • Outdoor Shower with Hot Water

  • Galley Sink

  • EccoFlo Diaphragm 12V Water Pump

VEHICLE MODS & ACCESSORIES

  • Thule Hide Away Awning

  • Van Speed Flares

  • Windows - CRL FW621L Mercedes Sprinter T-Vent Window

  • Fire Extinguisher

  • Smoke/CO2 detector

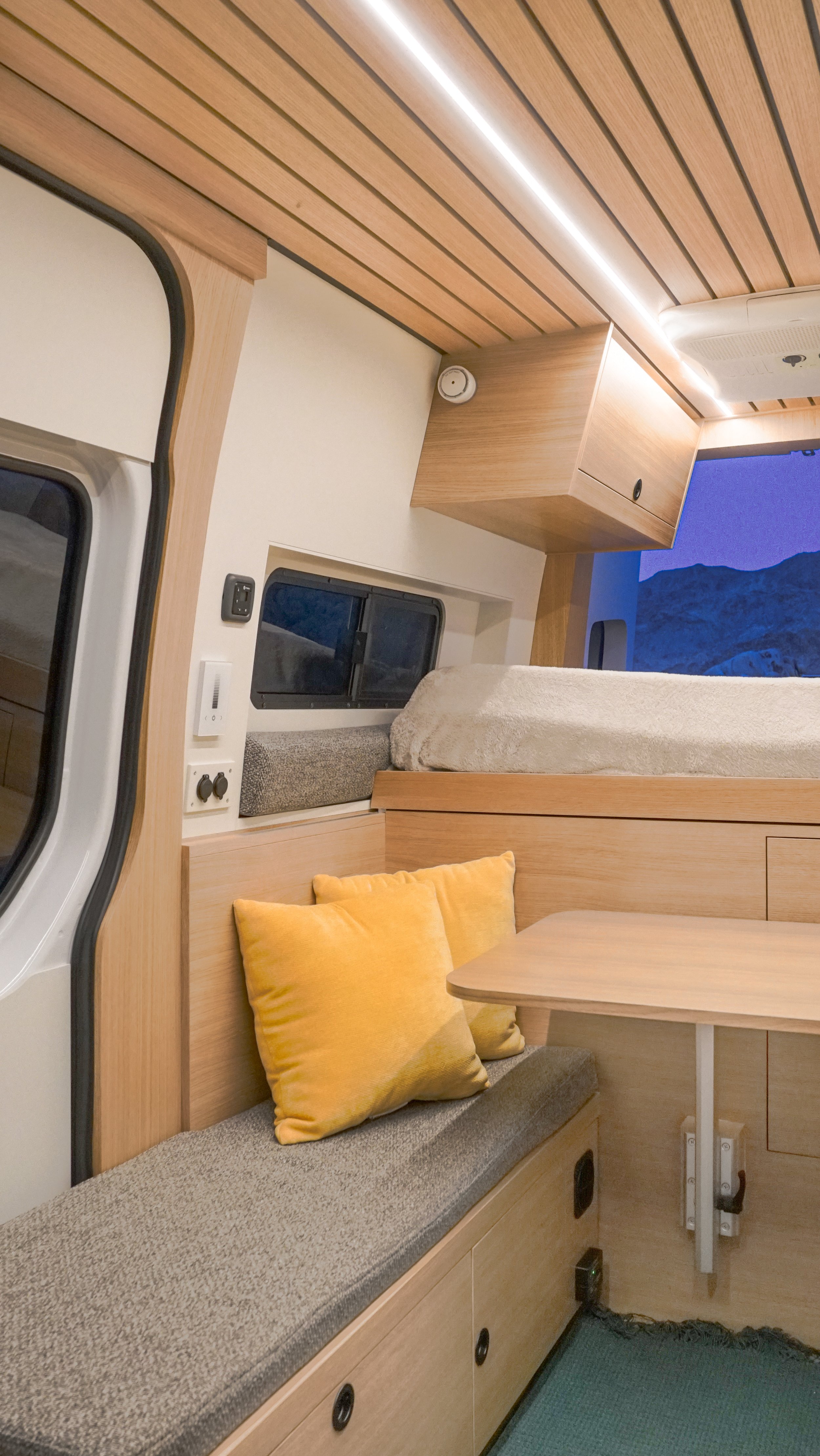

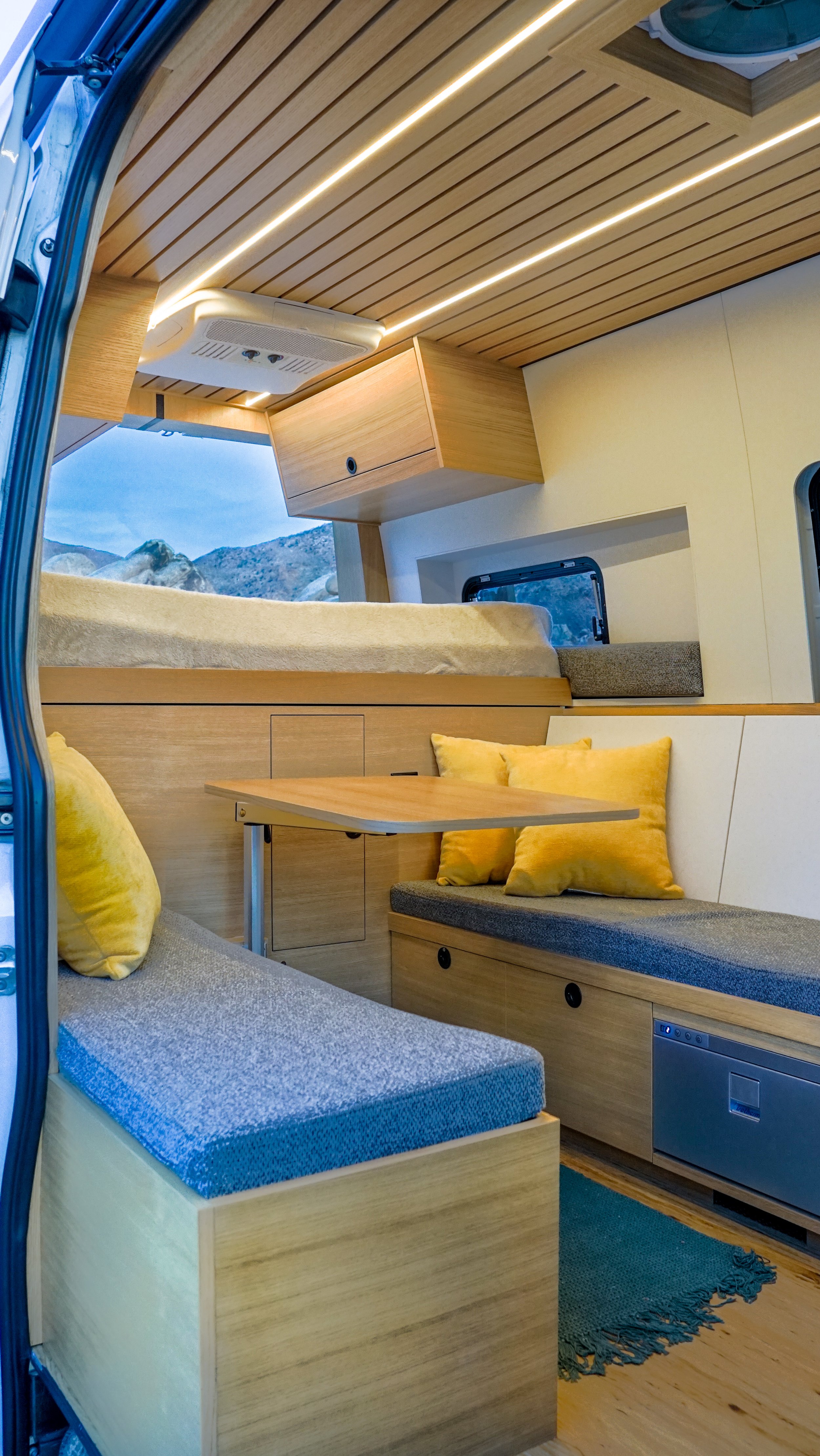

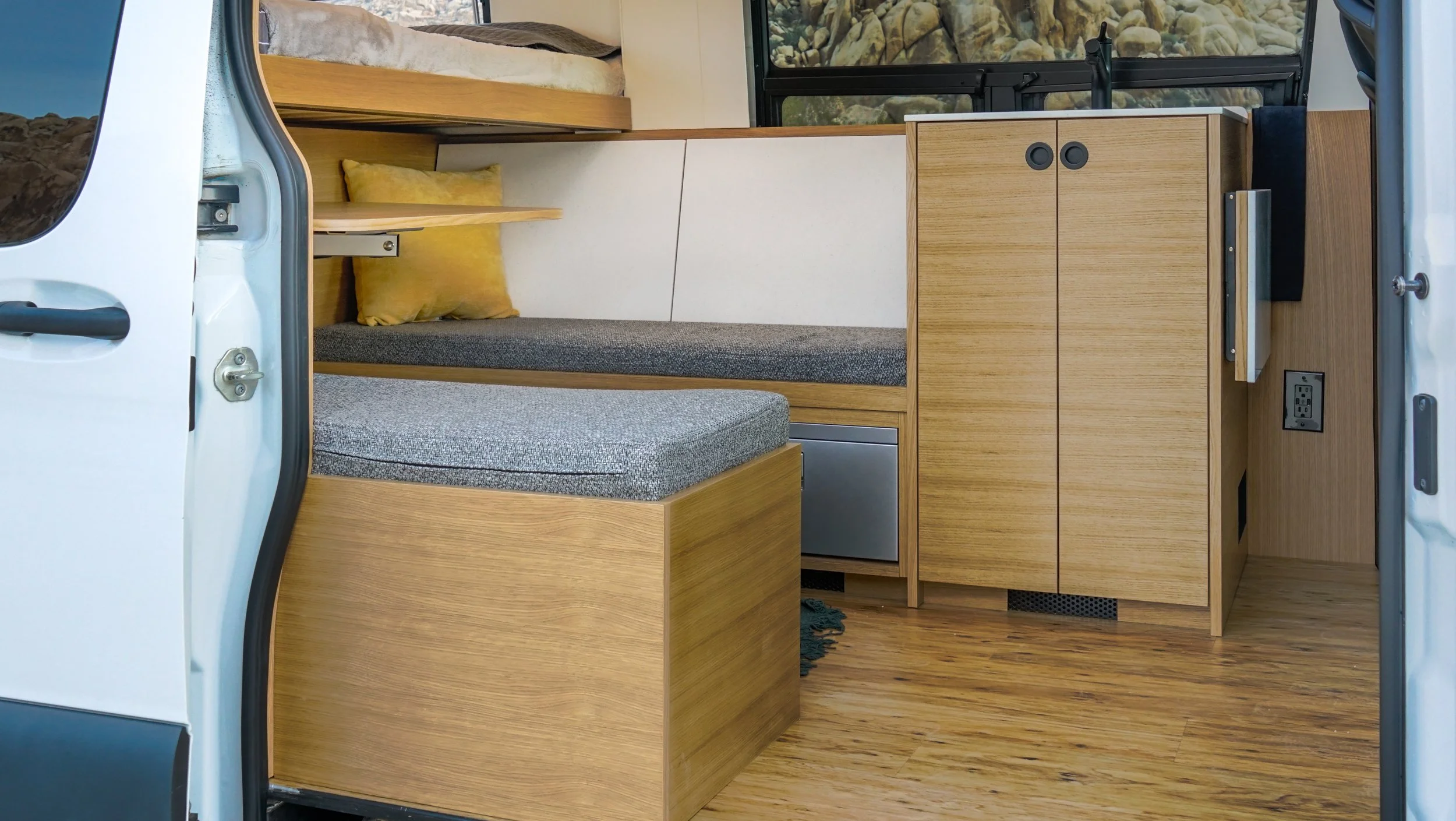

White oak cabinetry creates a light and bright aesthetic throughout the interior of the van.

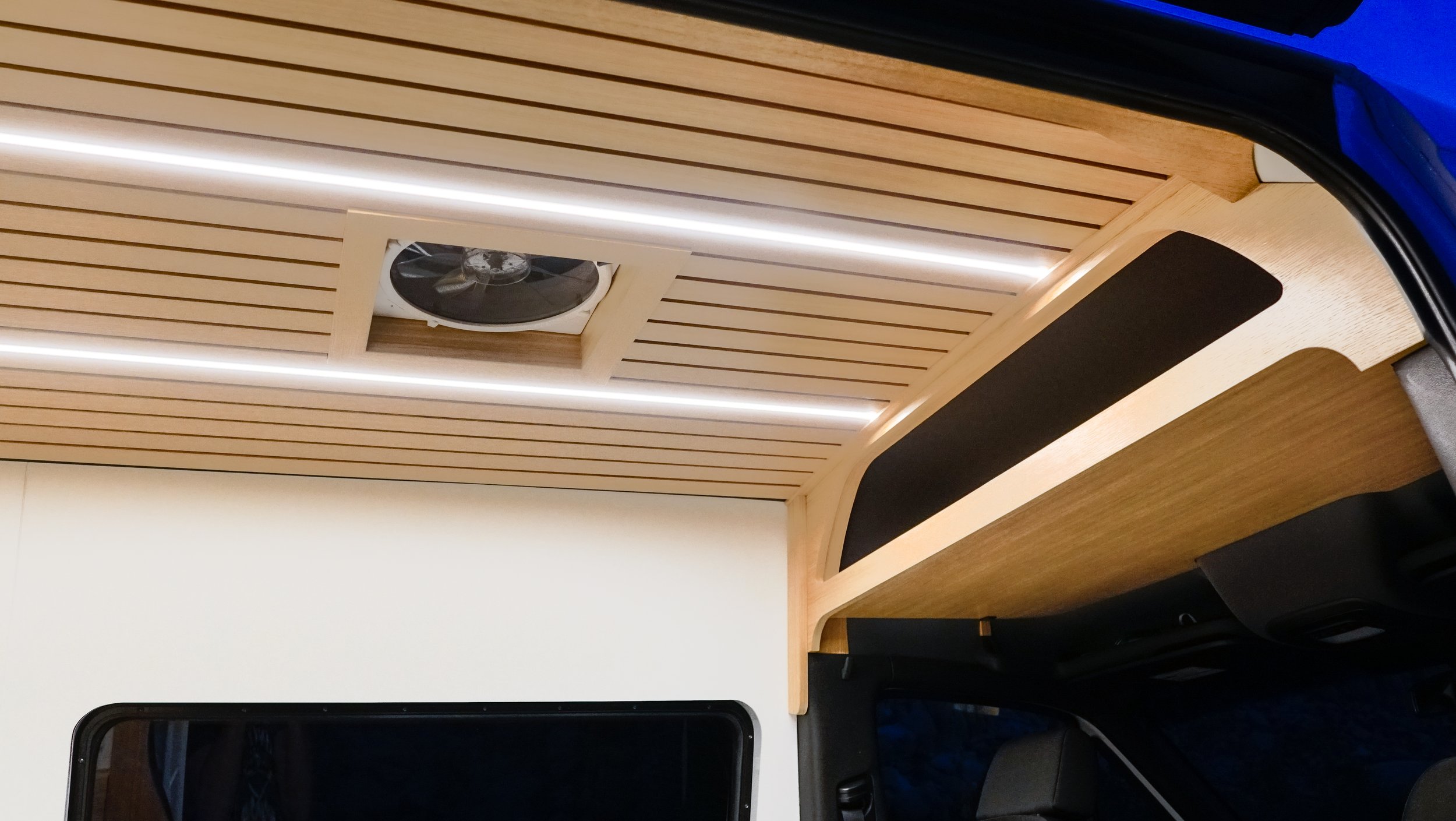

Upgraded wood trim pieces around the doors and windows have become a signature look of Ridgeline Vans.  Each piece is sprayed in-house, ensuring the highest level of quality and attention to detail.

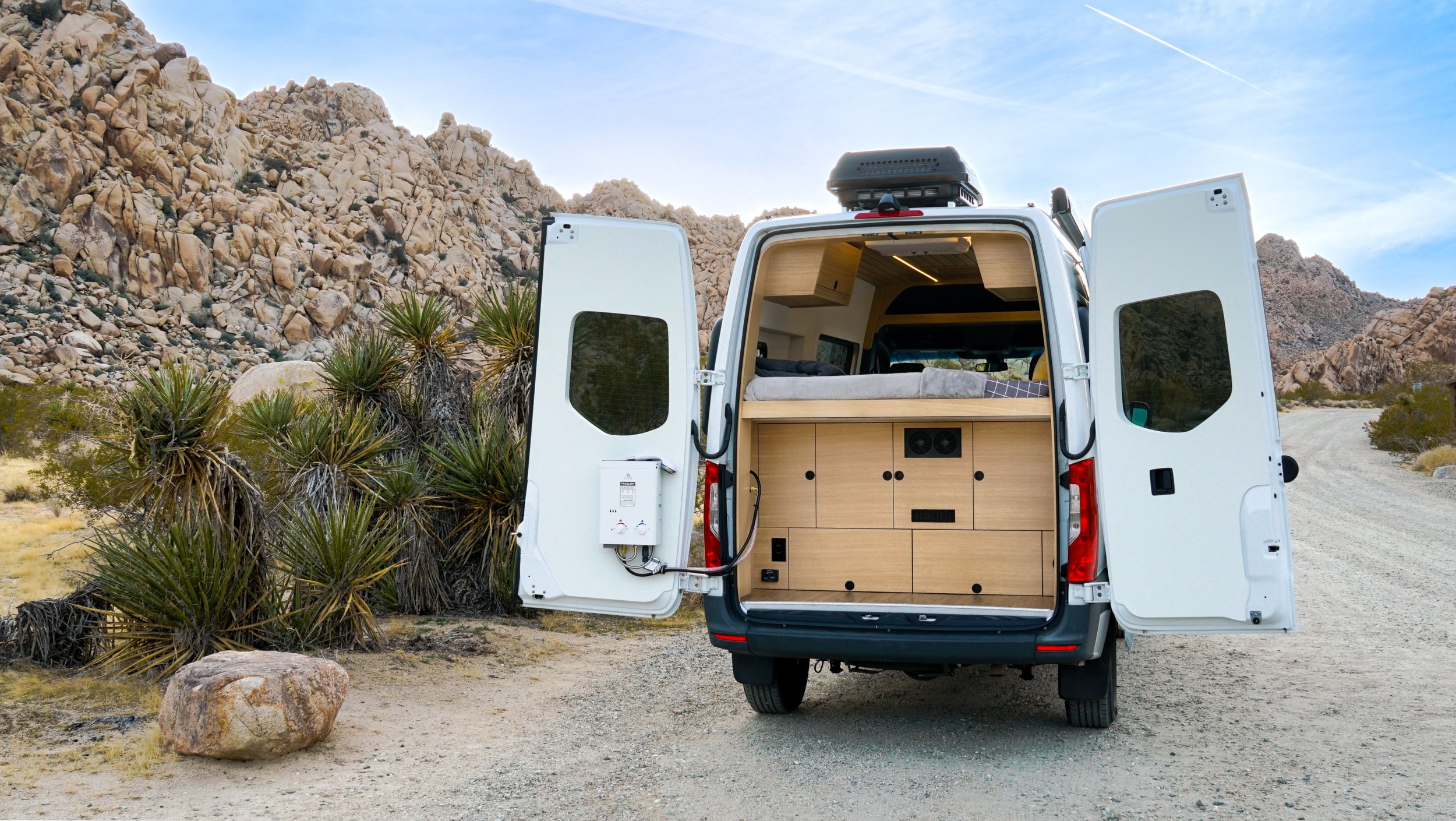

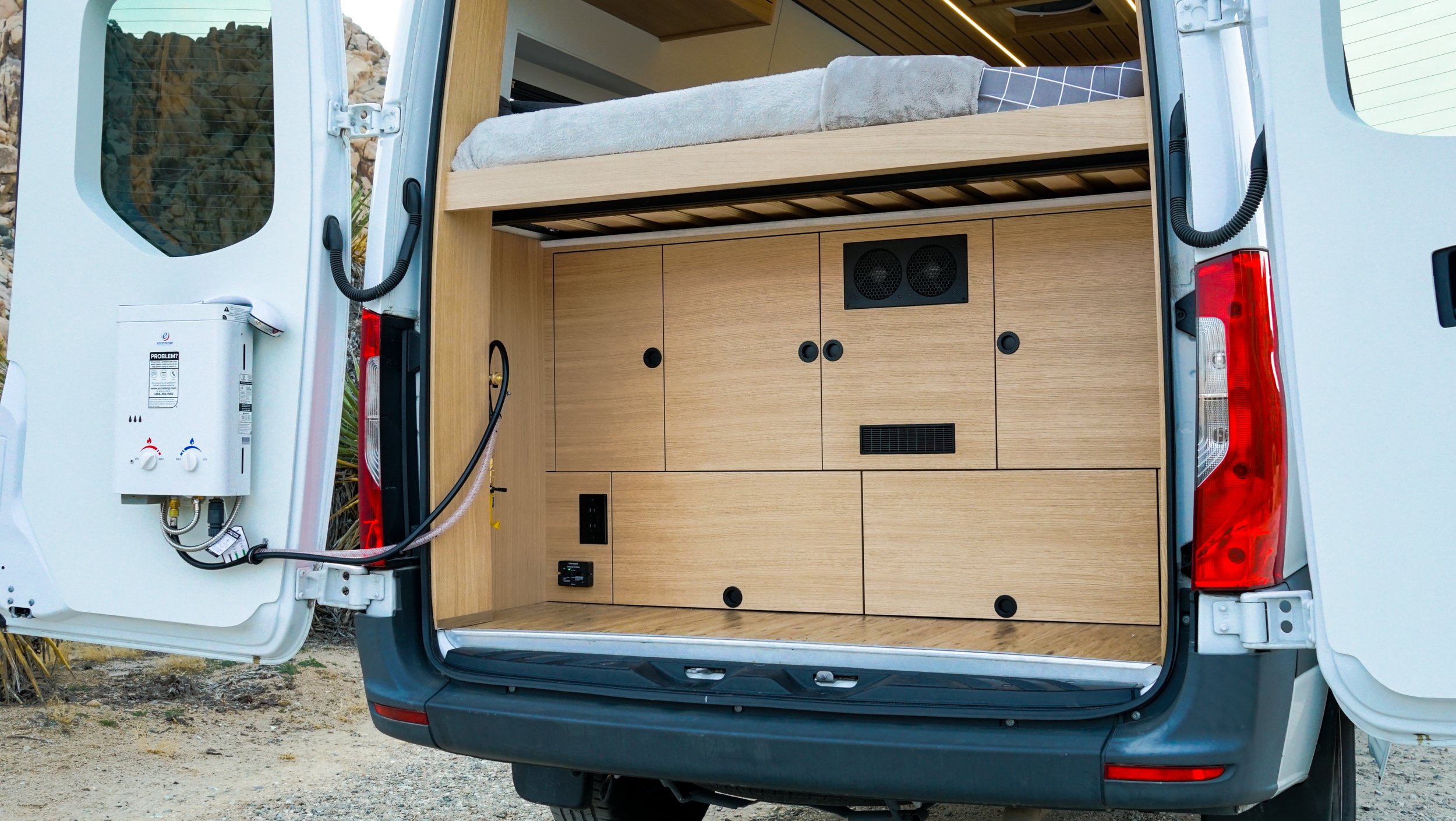

An outdoor hot water shower makes perfect use of the limited space inside of a 144” wheelbase van.

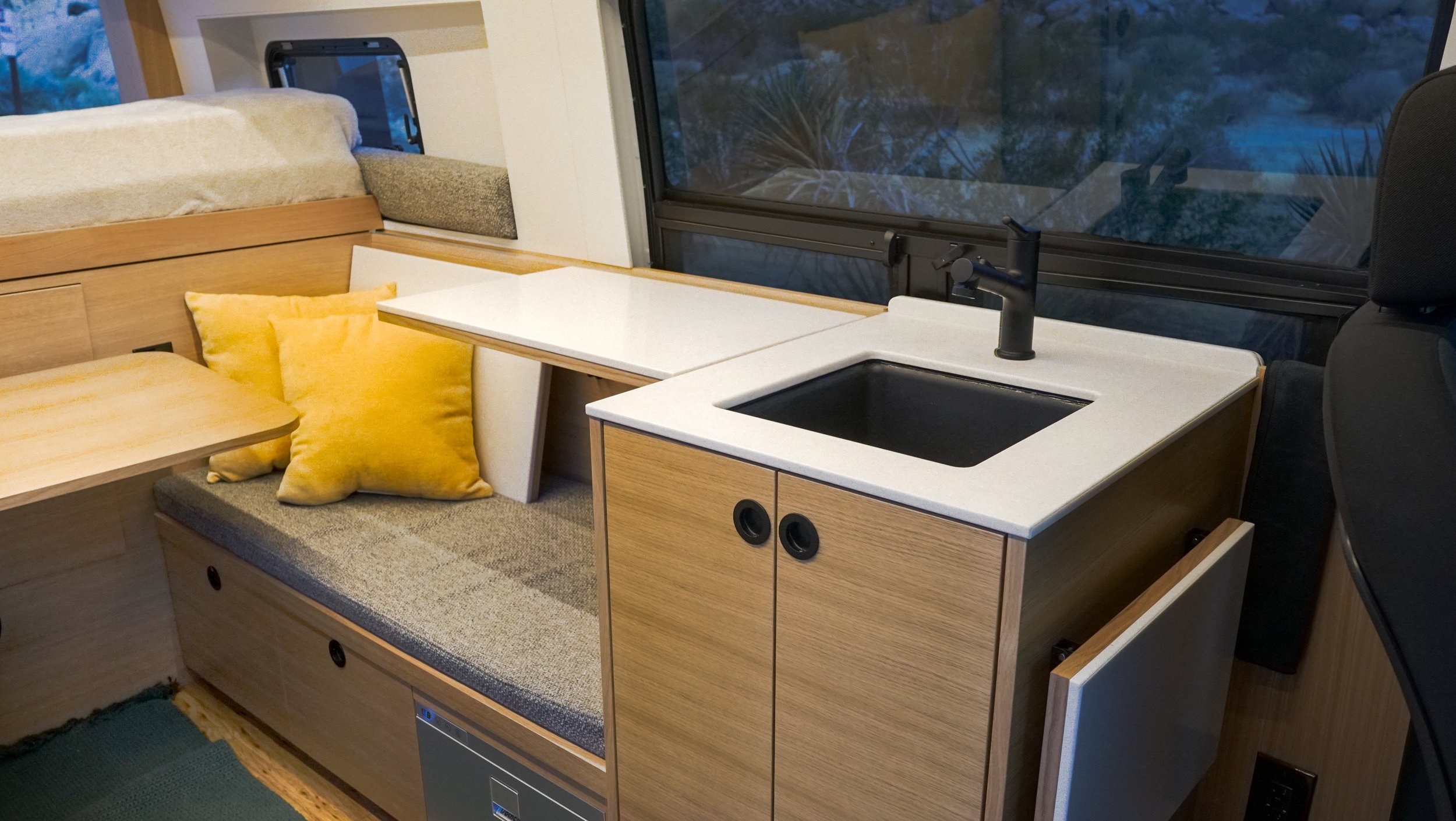

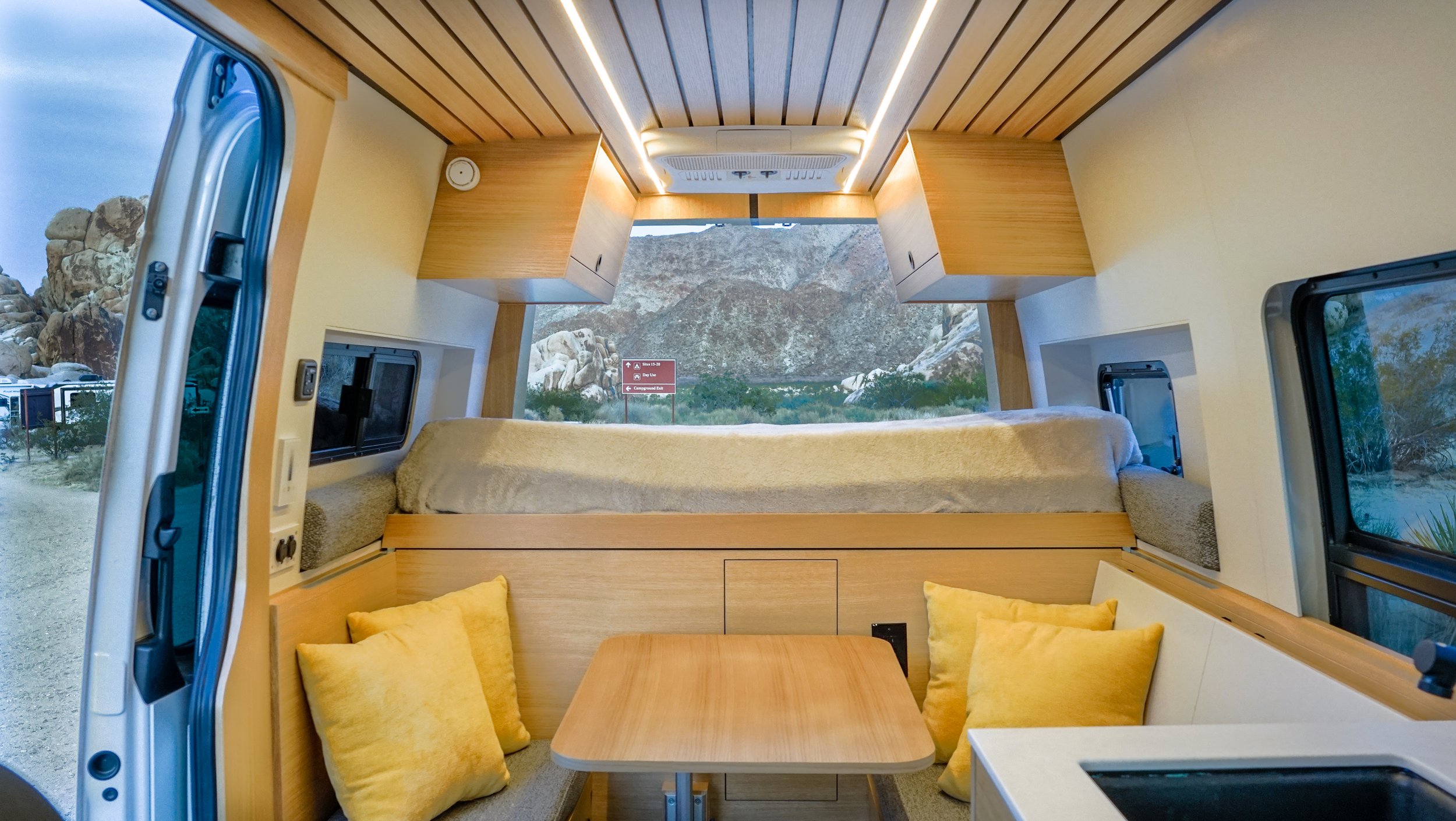

A pull out slat bed and massive fold up counter tops creates a versatile interior capable of hosting large dinner parties.
